The Strange Jukebox Amps from Seeburg

I  have to be "Jack of all Amps" or  get a normal job!




I have worked on really big old Jukebox amps long ago, and thought I would never see
one again, but I have a new friend that has about thirty of them and knows other
collectors, so I am in big juke-amp trouble now

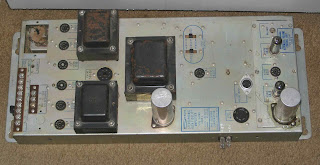

This is a Seeburg stereo tube jukebox amp. The whole thang is on the back door and
to service the amp, you just swing the door out and there it is.

This amp runs 6973 output tubes, which are like a Hi-Fi version of a 6bq5. The amp also has a "AVC" or automatic volume control circuit that keeps one record from being louder
than another record, or one song from being louder than another.







More of this interesting pasta mess of wiring to figure out. There is a high-voltage
supply, a bias and DC turntabe  motor supply, two 18 watt power amps, two preamps,
two tone control amps, a and a stereo AVC circuit all in there somewhere

The 6.3 volts AC for the filament comes from another transformer that is in the "Coin
Reciever" unit, so I had to sneak the filament volts off another amp!


The way one of these amps works is this. The whole amp is dead, customer walks up
and puts coins in, the filament volts is turned on and the amp warms up.
Then when the arm starts moving to the first selection, the 115 volts AC to the high voltage transformer is turned on and the 5u4 cranks up the high voltage to the tubes just in time before the needle hits the record. These tricks save the tubes and amp as it in idle, just warm mode until needed, so the jukebox can sit ready all day long.









This is the "Testing method" a stereo turntable and a record of oldies.
I had two of these amps to get running, so we listend to the same oldies while I set the bias on the 6973 tubes, which was a adventure as one tube out of the four was at maxium hot idle and one of the four was at the low idle point. without balancing adjustments, tubes have to be matched for same idle, which means out of ten tubes,
maybe four would really match up





This kind of job is the "Yeah Sure i can do it", then you just have to pile through and use your wits to make it all happen, so the customer can get a good sounding amp back,
and you can get paid, then pay the rent, and go on to another month, more work.
